2026 Trailmaster Cheetah 200x
2026 Trailmaster Cheetah 200x

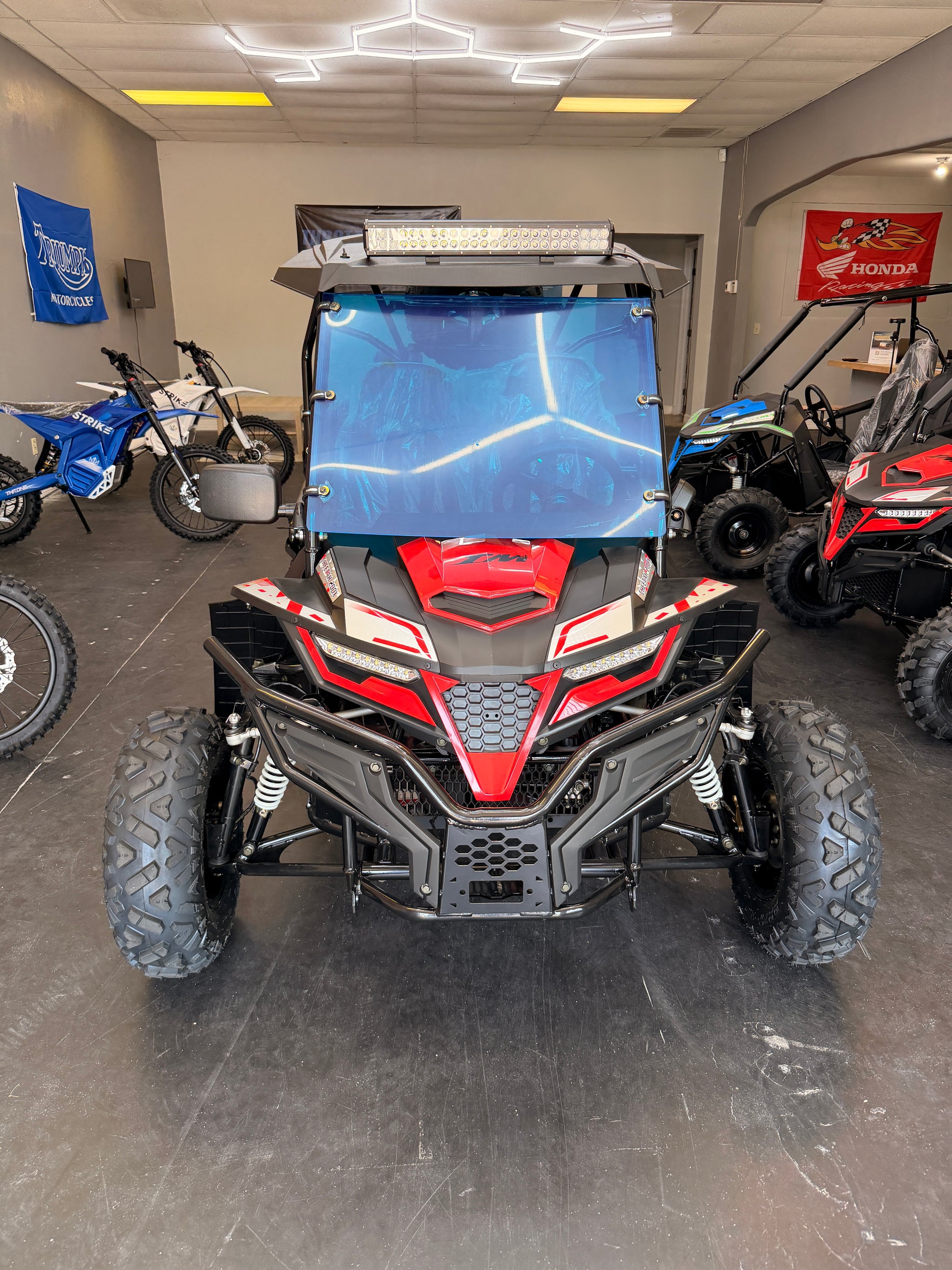

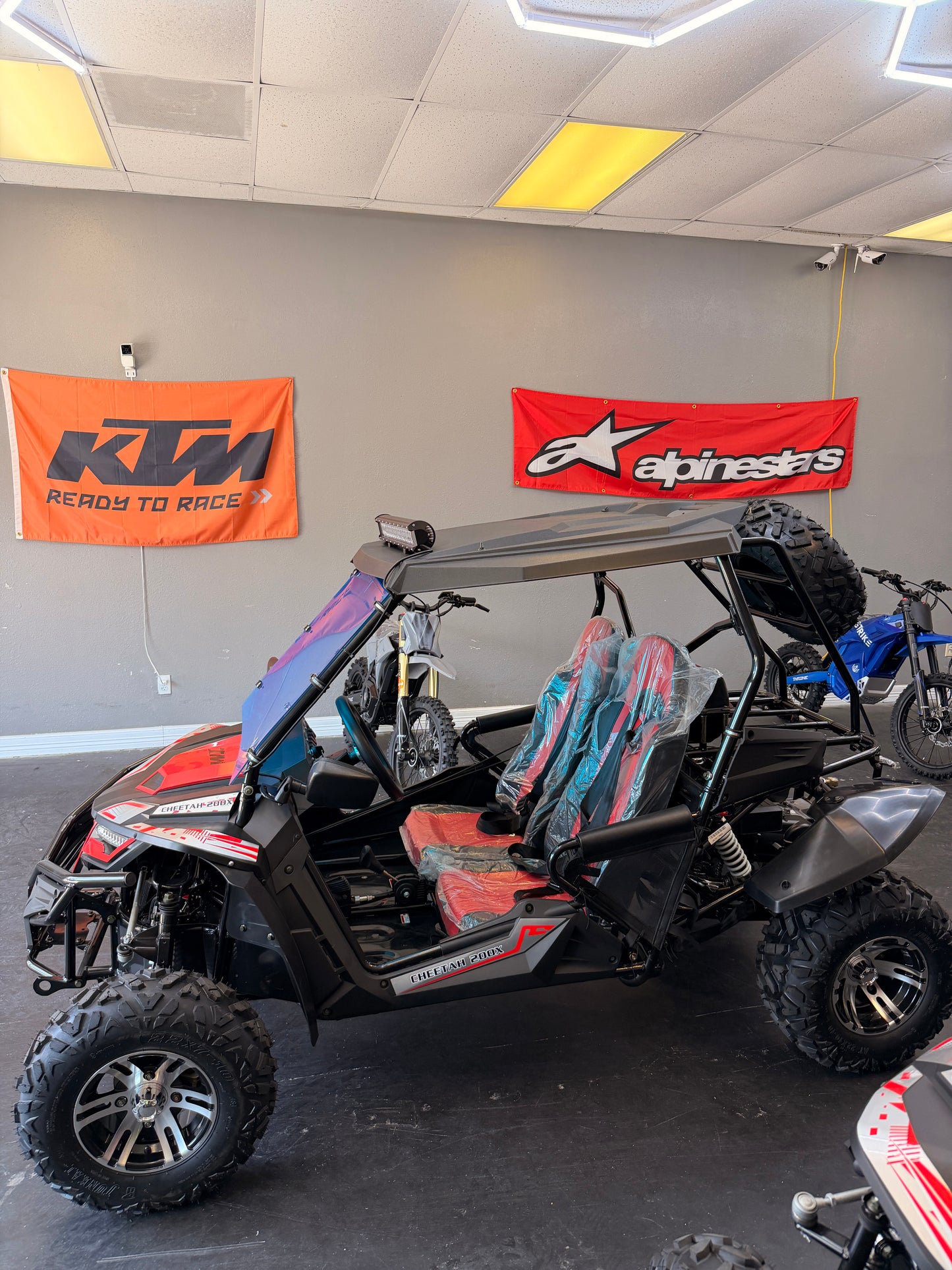

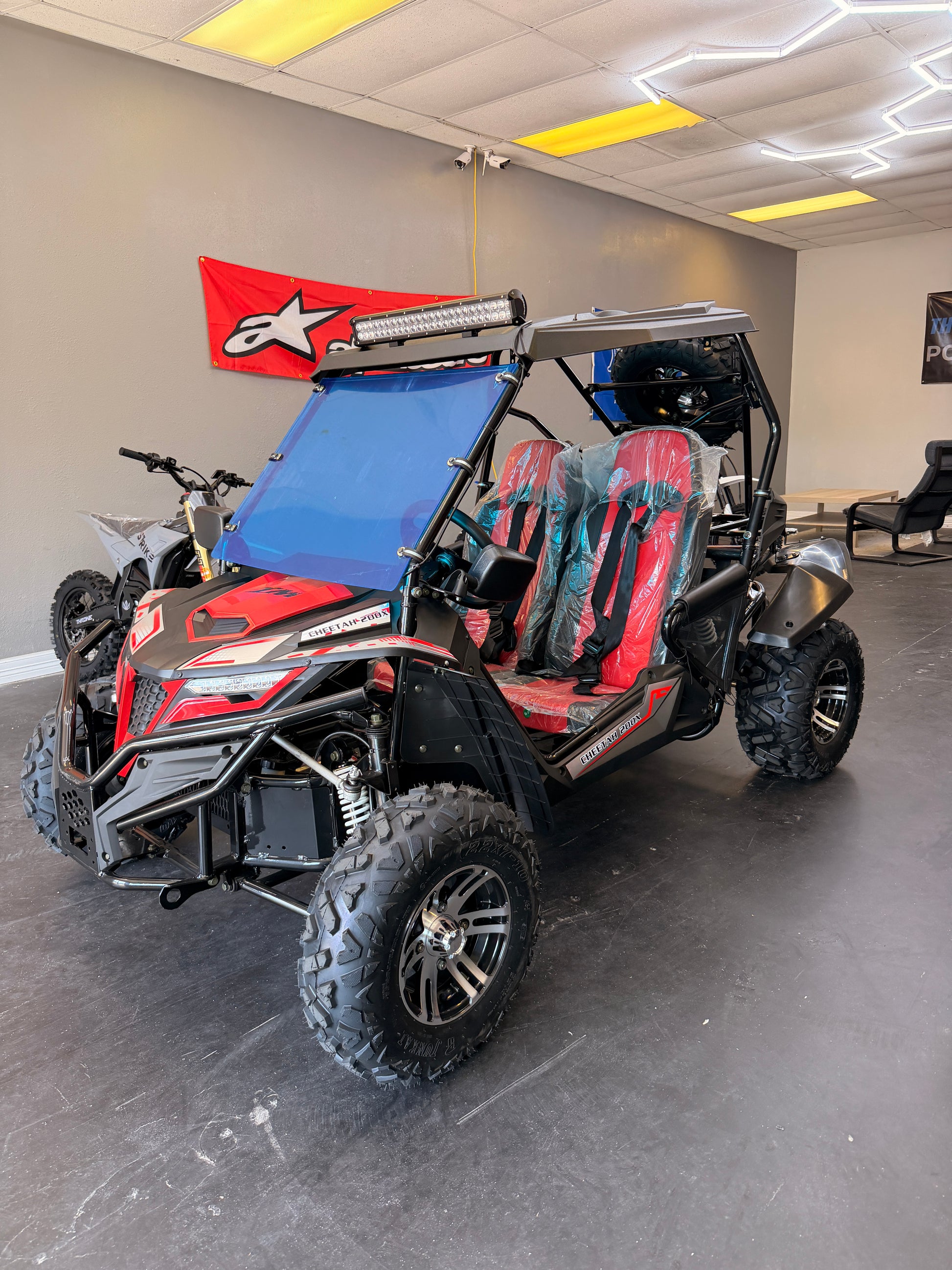

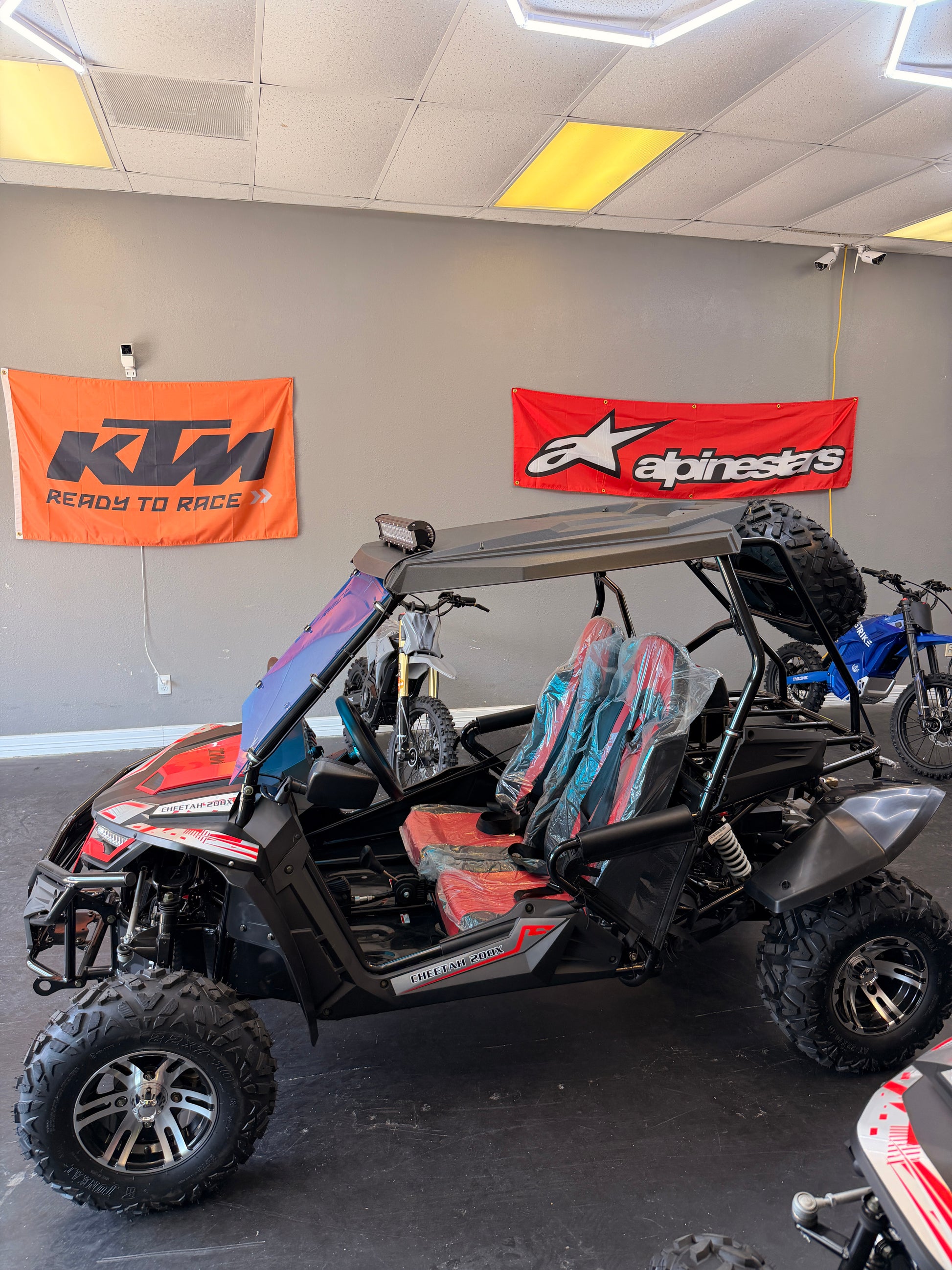

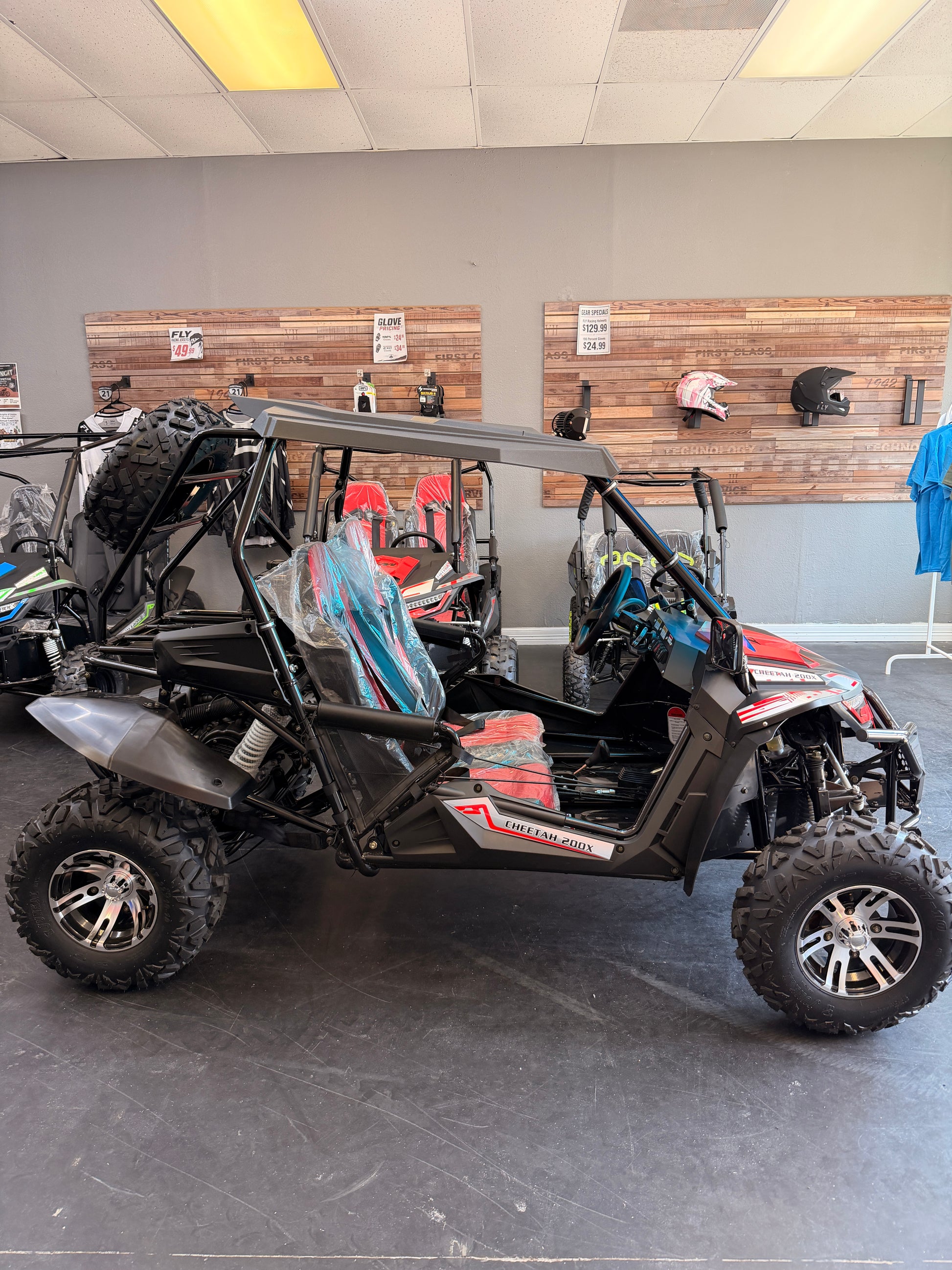

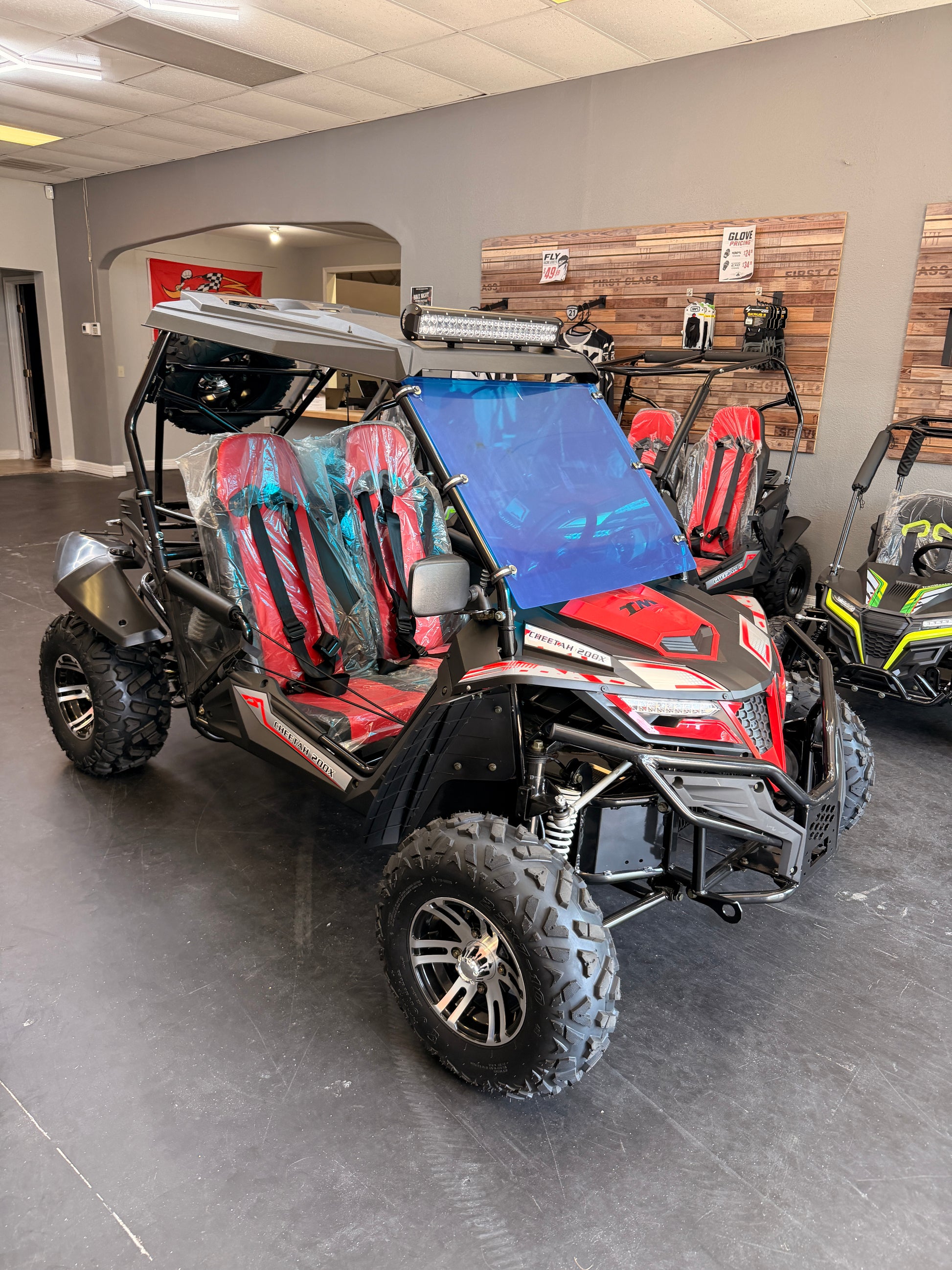

The TrailMaster Cheetah 200X is the deluxe, top-of-the-lineup Cheetah — sleek, powerful, and agile with the power plant, drivetrain, and suspension of a high-performance go-kart combined with the functionality of a full utility vehicle. Extra-long, independent front swing arms, a double ball joint, and articulating rear suspension soak up rough terrain and keep it planted, making it much harder to flip than a solid-axle kart. Adjustable high-back bucket seats and an adjustable steering wheel fit riders of nearly every size, while the automatic CVT with reverse, hydraulic disc brakes, and 3-point automotive-style retractable seat belts keep it easy and safe to drive. This Special-package build adds alloy wheels, a windshield, top LED lightbar, side mirrors, and a spare tire on top of the standard canopy top and cargo rack. Available now at our Southeast Houston showroom.
Six Things That Separate The Cheetah 200X From Every Other Go-Kart
Big power and top-shelf trim are the headlines — but the 200X's real advantage is a suspension and chassis built to handle both, so it's stable at speed instead of nervous.

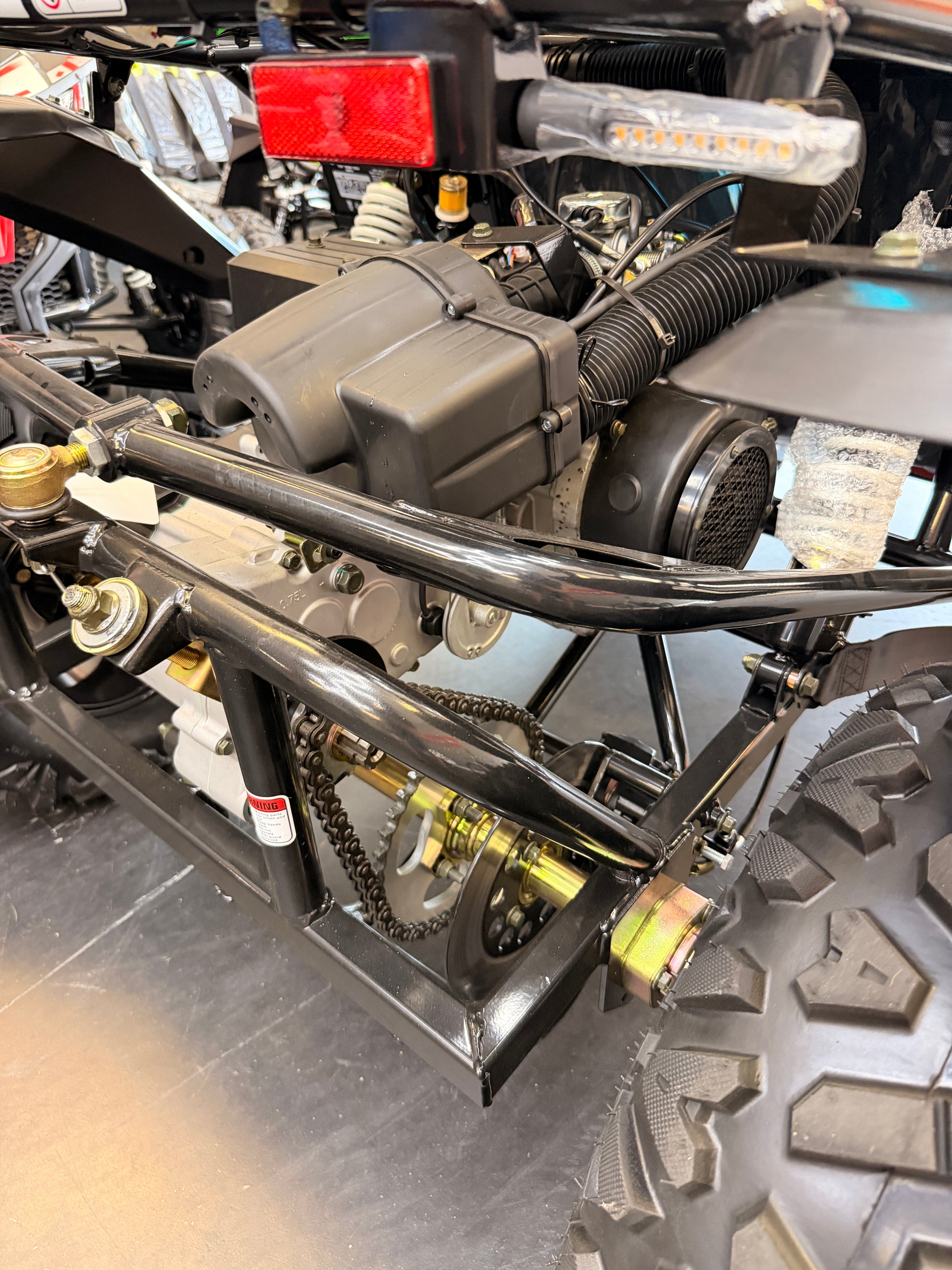

A reliable 200cc, 4-stroke, air-cooled GY6 engine puts out 8.8 HP at 7,500 rpm and 7 lb-ft of torque, paired to a fully automatic CVT transmission with reverse — no clutch, no shifting, just twist the pedal and go. Top speed lands at 43.5 mph with a 12-degree climbing ability.
Extra-long independent front swing arms with a double ball joint and an articulating rear suspension give the 200X real ground clearance and lets it glide over rough terrain while performing like an independent suspension system — making it much harder to flip than a solid rear-axle go-kart.

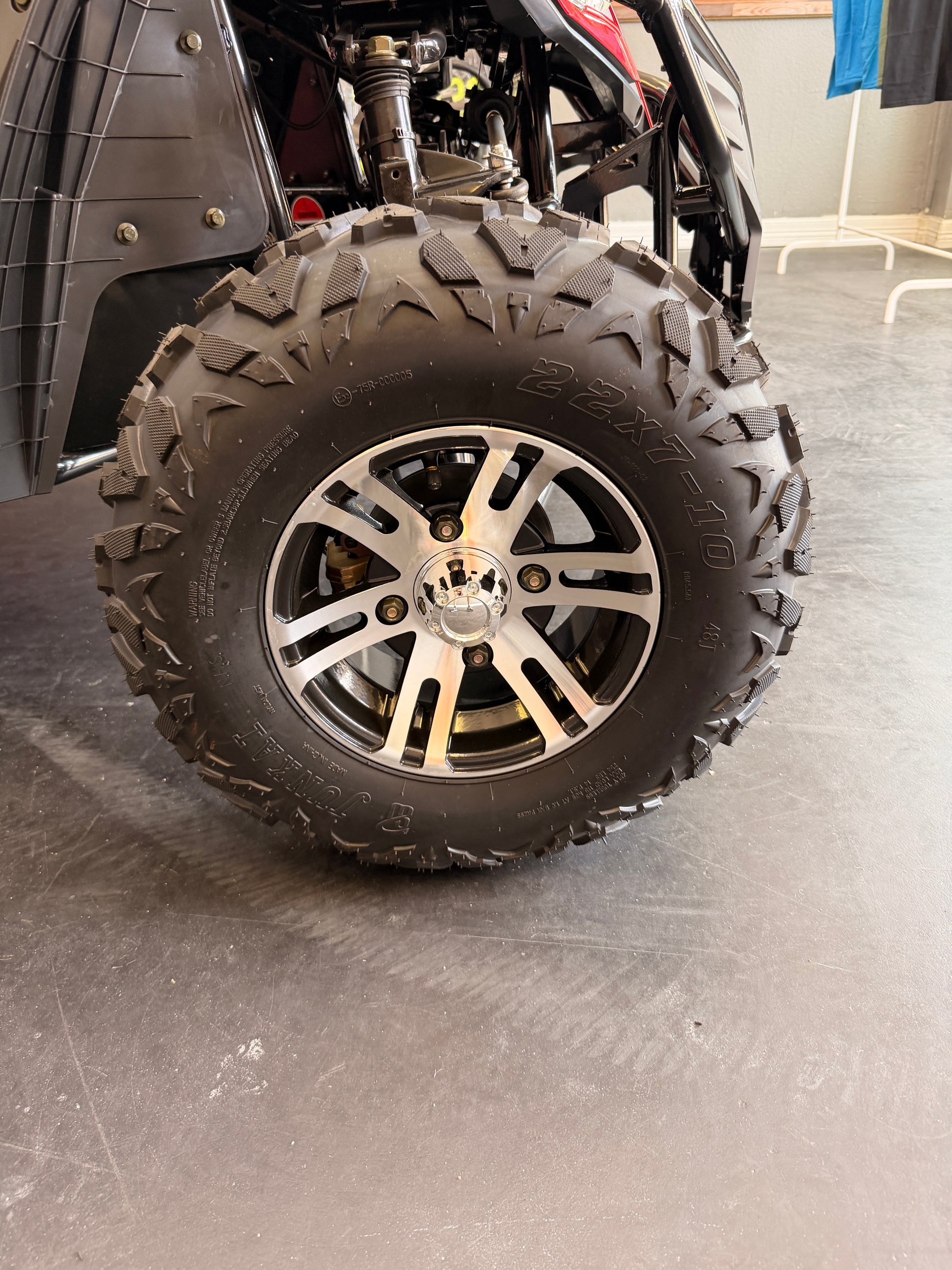

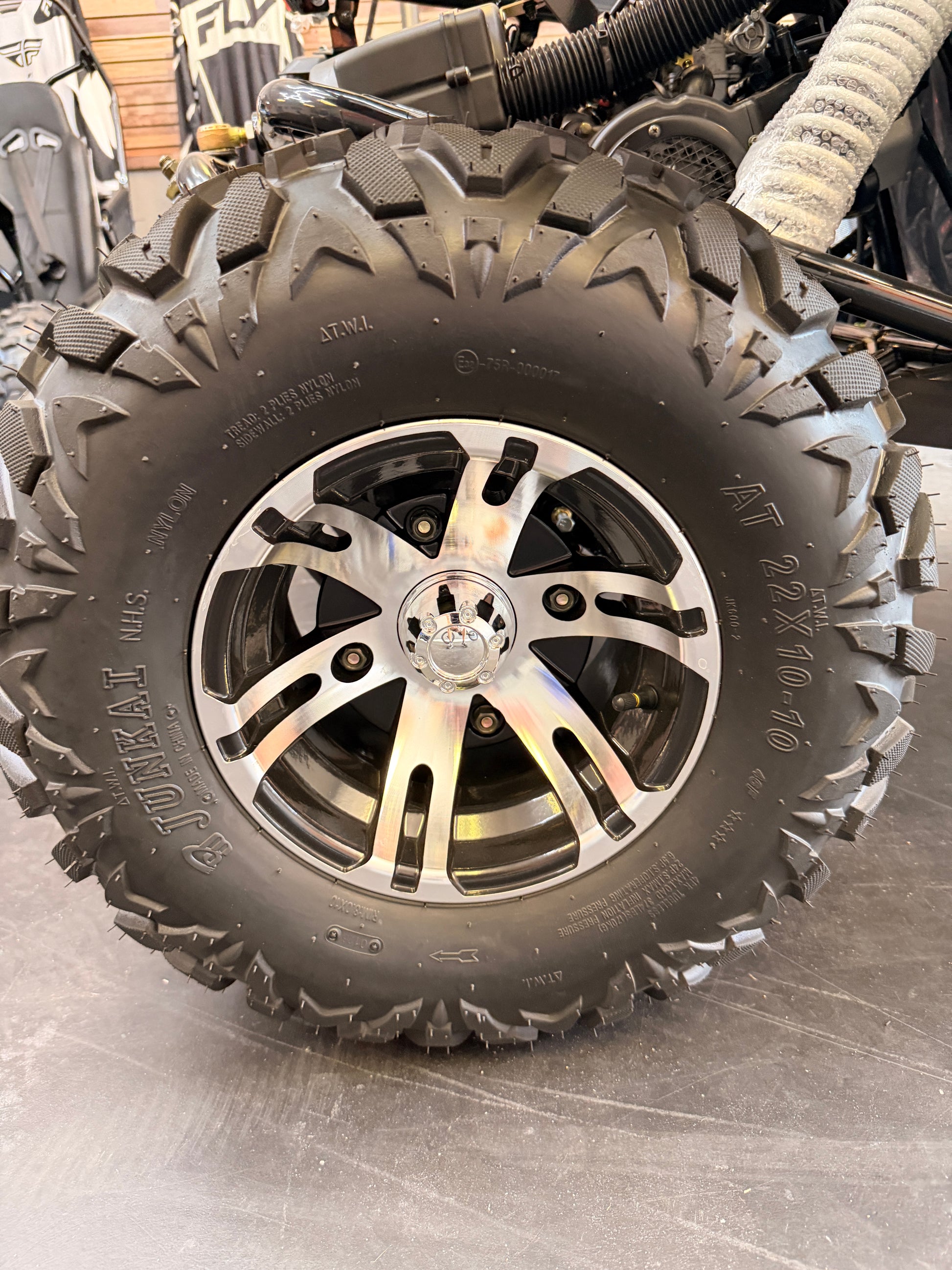

Hydraulic disc brakes on both the front and rear wheels give the 200X real stopping power at speed, backed by a parking brake for safe stops on inclines. Combined with 20x7-8 front and 22x10-10 rear tires, it stays planted under braking as well as through the turns.

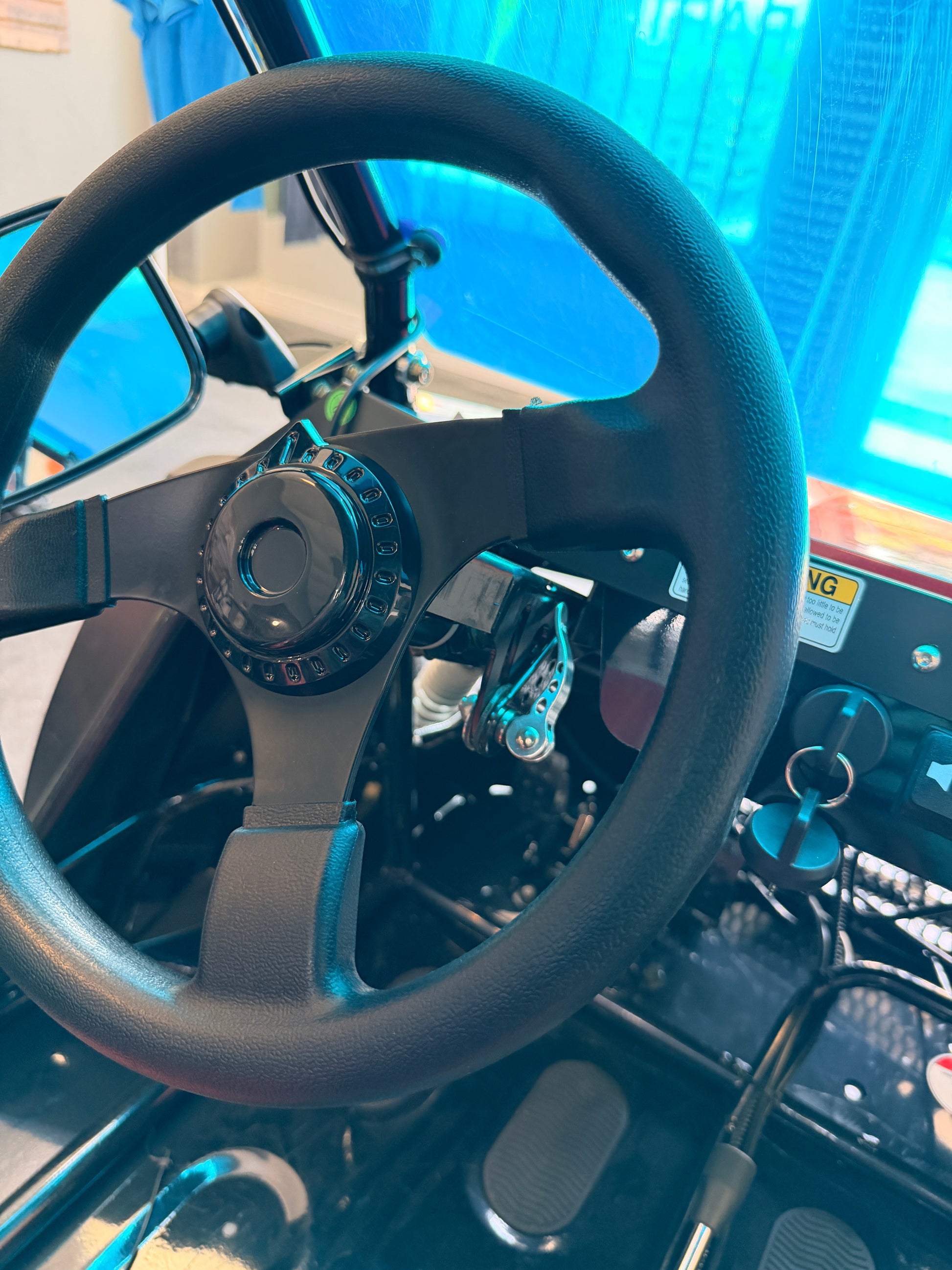

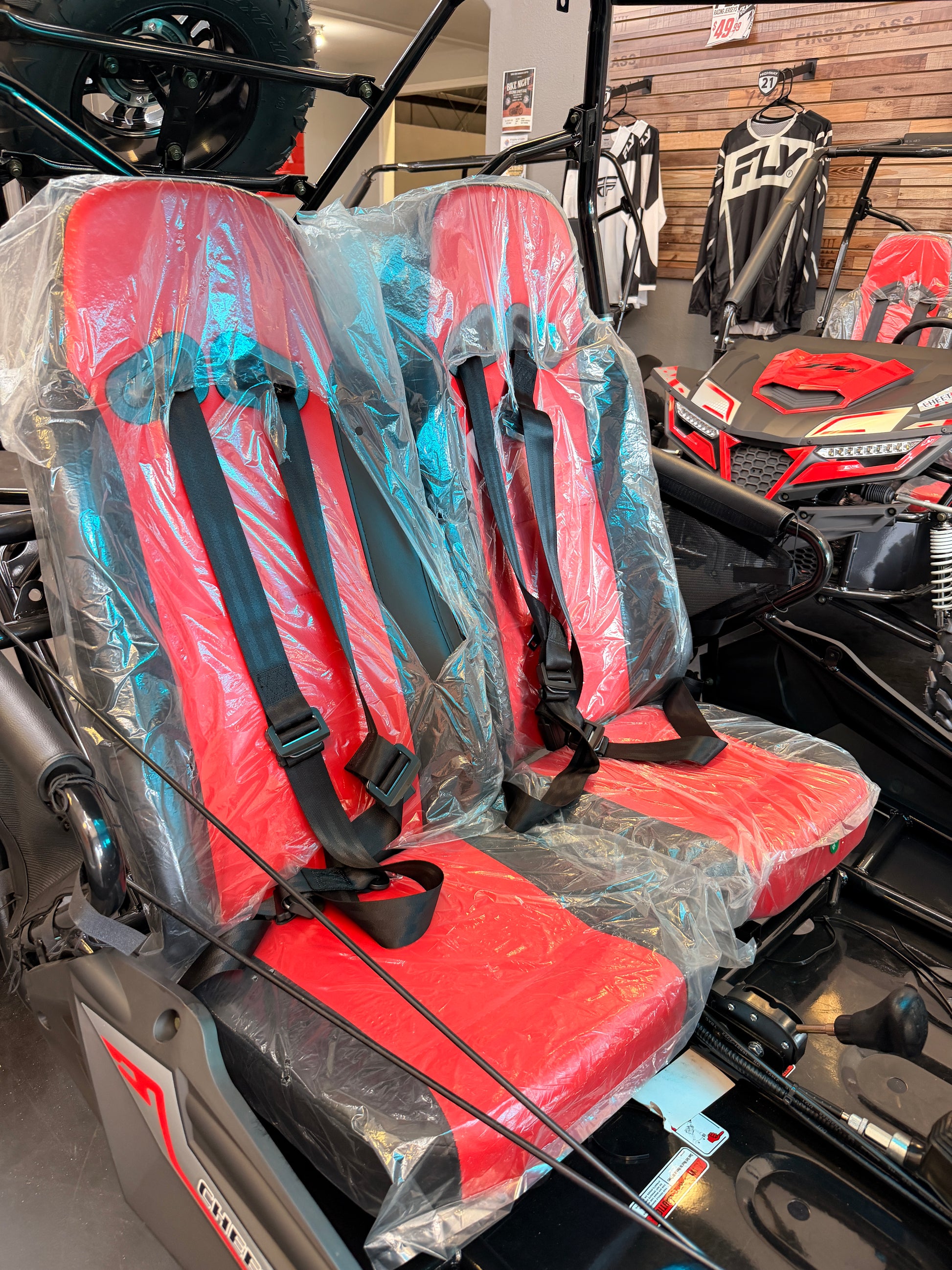

Adjustable high-back bucket seats (pedal-to-seat-back range of 38" to 43") and an adjustable tilt steering wheel accommodate all shapes, sizes, and skill levels of drivers. A 3-point automotive-style retractable seat belt and 5-point safety harness keep everyone secured.

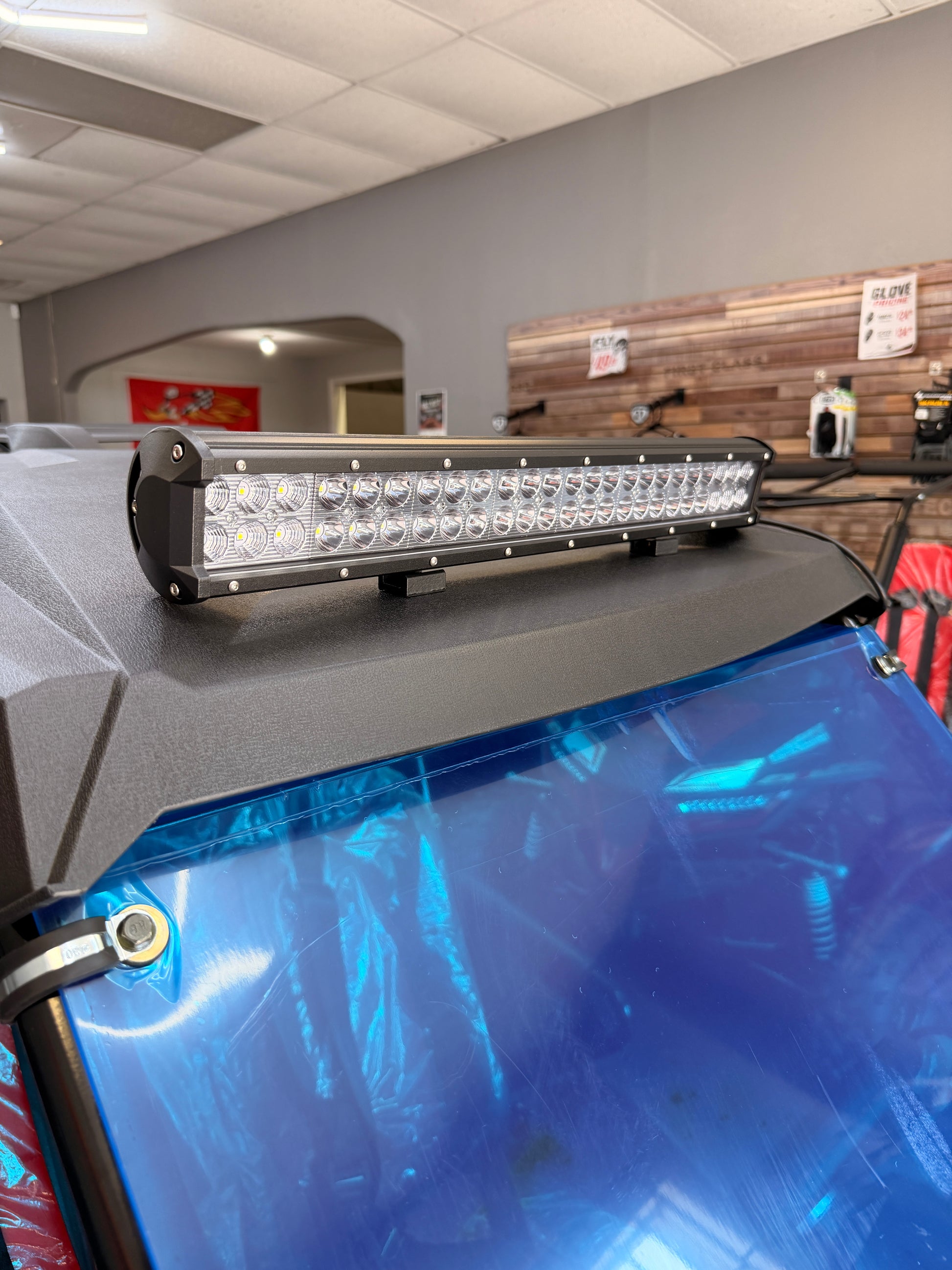

Dramatic body panels are paired with an LED light package featuring flowing turn signals, plus hi/low beam headlights and a top-mounted LED lightbar on this Special trim — ready for both daylight trail runs and dusk cruising around the property.

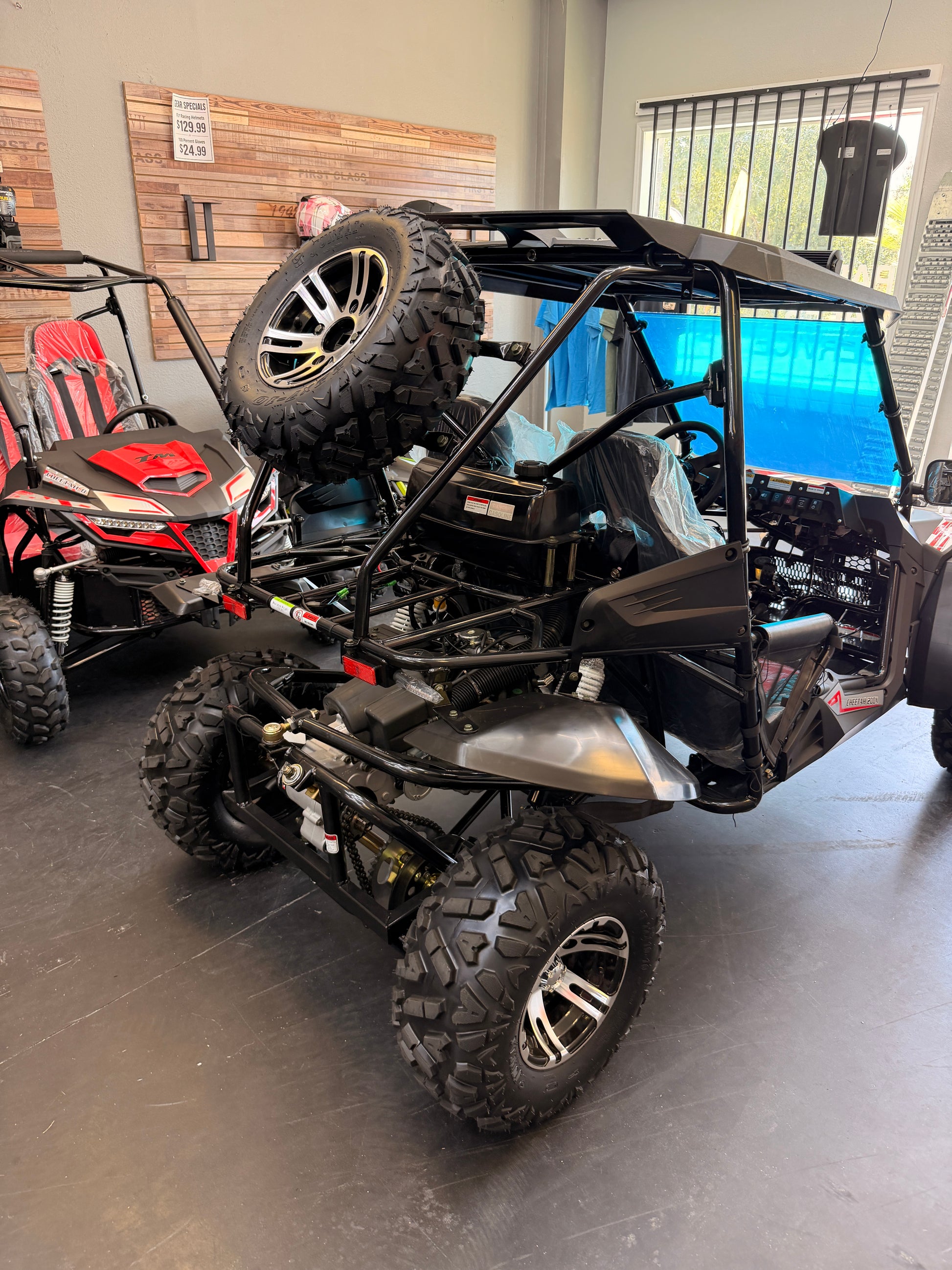

This build adds alloy wheels, a windshield, side mirrors, and a spare tire on top of the standard canopy sunshade top, cargo utility rack, fenders, and polished stainless steel muffler — everything you need straight off the lot, no add-ons required.
TrailMaster Cheetah 200X — Complete Spec Sheet
| Engine Type | 200cc, 4-Stroke, Single Cylinder, Air-Cooled |
| Max HP | 8.8 HP @ 7,500 rpm |
| Max Torque | 7 lb-ft @ 6,000 rpm |
| Bore x Stroke | 2.26" x 2.28" |
| Top Speed | 43.5 mph |
| Climbing Ability | 12 degrees |
| Ignition | C.D.I. |
| Starting System | Electric |
| Battery | 12V 10Ah |
| Carburetor | Deli (Vacuum Film) |
| Engine Oil | SAE 10W/15W-40 |
| Clutch / Transmission | Automatic CVT with Reverse |
| Driveline | Chain / Dual Wheel Drive |
| Front Suspension | Double A-Arm, Independent |
| Rear Suspension | Articulating Swing-Arm |
| Front / Rear Brakes | Hydraulic Disc, Both |
| Front Tire | 20x7-8 |
| Rear Tire | 22x10-10 |
| Fuel Capacity | 2.25 gal |
| Adjustable Driver Seat | Pedal to Seat Back: 38" – 43" |
| Weight (GW / NW) | 573 lbs / 485 lbs |
| Max Load | 500 lbs |
| Wheelbase | 59 inches |
| Overall L x W x H | 85" x 53.1" x 57.5" |
| Height to Seat | 13.8 inches |
| Min Ground Clearance | 6.7 inches |
| Safety Restraint | 3-Point Automotive-Style Retractable Seat Belt, 5-Point Harness |
| Included Equipment | Alloy Wheels, Windshield, LED Lightbar, Side Mirrors, Spare Tire, Canopy Top, Cargo Rack |
| Use | Off-road / closed-course only — not street legal |
How the Cheetah 200X Steps Up From the Cheetah 8
Both wear the Cheetah name and DNA — here's exactly what changes when you go up to the 200X.
| Spec | Cheetah 8 | Cheetah 200X ← You Are Here |
|---|---|---|
| Engine | 208cc, 7.5 HP | 200cc, 8.8 HP |
| Top Speed | 32 mph | 43.5 mph |
| Suspension | Double A-arm / swing-arm | Extra-long independent front + articulating rear |
| Brakes | Rear disc only | Hydraulic disc, front & rear |
| Seat Belt | 4-point safety belt | 3-point automotive-style + 5-point harness |
| Weight (GW) | 485 lbs | 573 lbs — larger, sturdier chassis |
| Included Extras | Sunshade top, utility rack | Alloy wheels, windshield, LED lightbar, mirrors, spare tire |
| Best For | Youth & smaller adults up to 5'8" | Full-size adults, higher speed, off-road/utility use |
Who the TrailMaster Cheetah 200X Is Built For
- Adults and taller teens who want a full-size, fully-loaded go-kart/UTV
- Families who want independent suspension for rough trail and property riding
- Riders who want the fastest, most powerful Cheetah in the lineup
- Anyone who wants a fully equipped unit — windshield, lightbar, alloy wheels included
- Buyers who want hauling utility (cargo rack, 500 lb max load) alongside performance
- Houston-area riders who want reverse and automatic CVT for easy, no-clutch driving
- Younger or smaller riders — the Cheetah 8 or Cheetah 6 fit smaller frames better
- Buyers on a tighter budget — the Cheetah 8 covers most trail riding for less
- Anyone needing street-legal operation — off-road and closed-course only
- Riders who want the most compact footprint for storage or transport
See The Cheetah 200X In Person
at Our SE Houston Showroom
The Cheetah 6, Cheetah 8, and Cheetah 200X are all on the floor. Come sit in each one, compare seat room and features, and call ahead to confirm availability.
